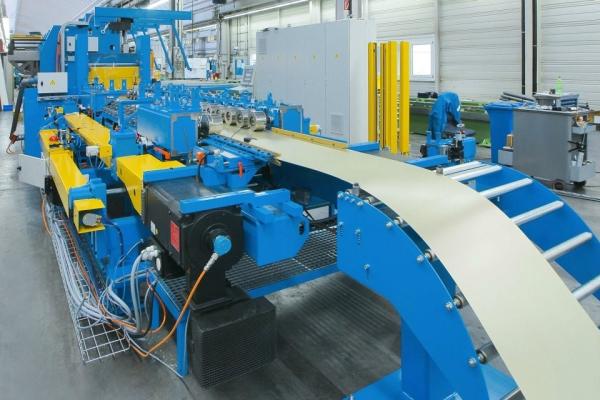

Durable Cable Tray Roll Forming Machine with 15KW Power and 20 Forming Stations
Main Specifications
- Cable tray width: 50mm-700mm
- Working Speed: 12--17 m per minute
- Forming stations: about 20 forming machine
- Material of Roller: Gcr15,
- Material of Shaft: 45# Advanced Steel (Diameter: *90mm)
- Main Power with reducer: 15KW WH Chinese Famous
- Cutting: Hydraulic Cutting Cr12mov
- Material of Cutting Knife: Cr12Mov, Quench HRC58-62
- Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
- The whole machine is controlled by industry computer-PLC.
- PLC--Panasonic, Japan
- Touch Screen—Panasonic, Japan
- Drive way: Chain drive, with 1.5 inch 20A Chain
Machine Component List
| 5 tons manual de-coiler | 1 set |
| Levelling device | 1 set |
| Servo Feeding device | 1 set |
| Press Machine JH-200 | 1 set |
| Main Roll Forming Machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic Station | 1 unit |
| Cutting device | 1 unit |
| Punching mould | 1 unit |
| Out table | 2 units |
Standard Profile Drawings
Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.
Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
